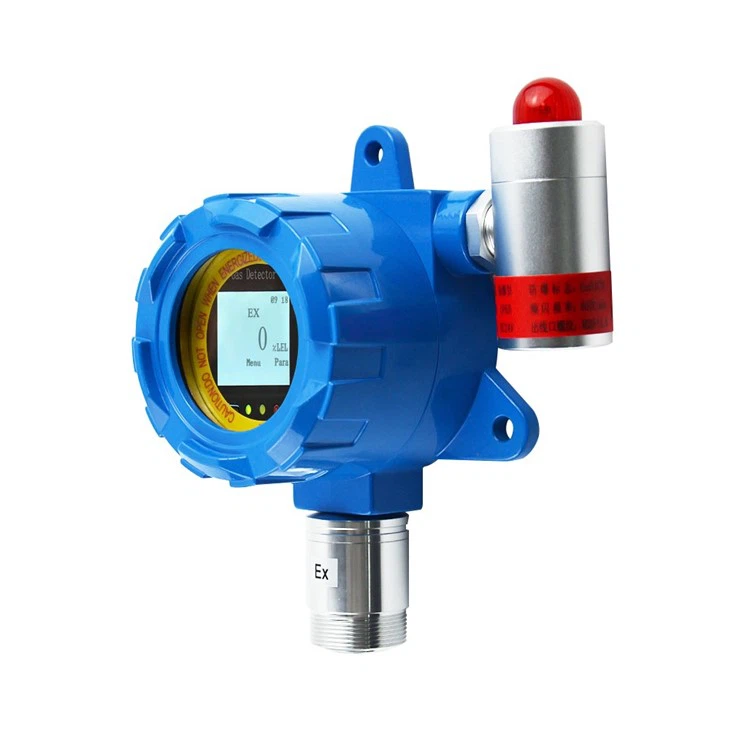

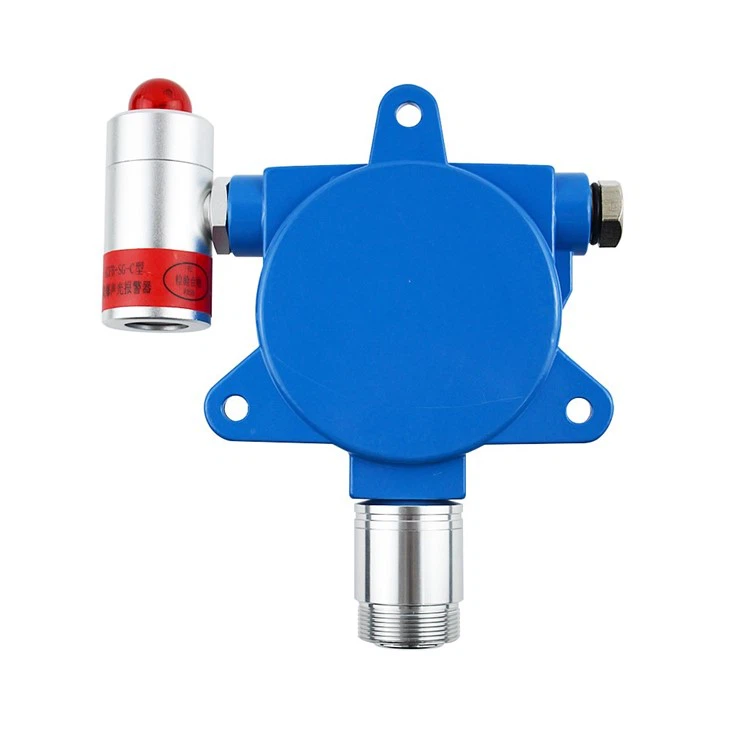

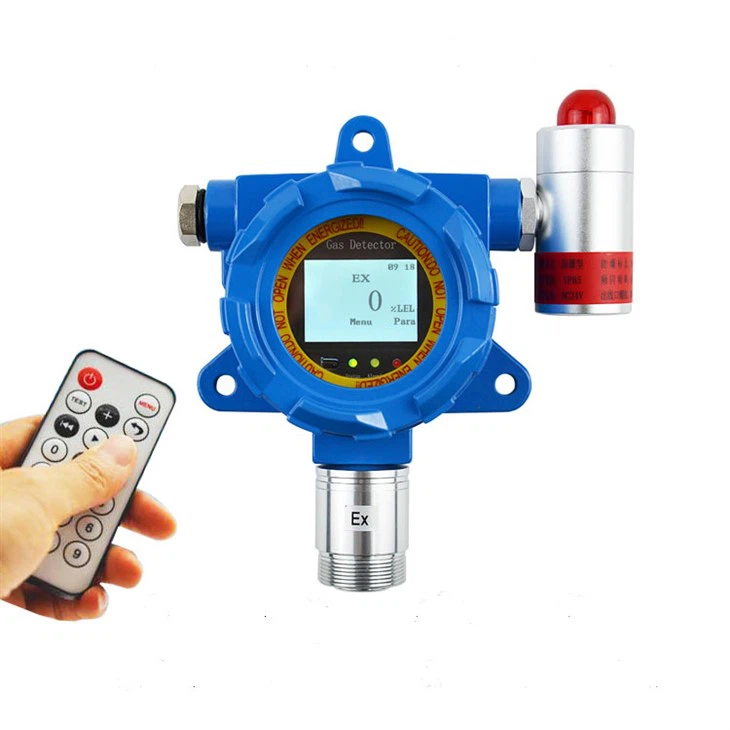

Ethanol Gas Detector

1. Cov lus qhia luv luv:

Tsau C2H6O ethanol gas detector siv high precision thiab ceev teb sensor, kuaj ethanol gas leak concentration los ntawm ntuj diffusion, thaum roj to ntau tshaj li ceeb toom cov ntsiab lus (ib txwm teeb 25%, neeg siv tau yooj yim), tus ntes yuav xa suab thiab lub teeb ceeb toom los ntawm alarm light.LCD zaub (Tsis muaj zaub thiab LED zaub), 4-20mA thiab RS485 Modbus teeb liab tso zis, txuag 3000 cov ntaub ntawv tswb, CE thiab ATEX tau pom zoo.

2. Cov lus qhia ntxaws:

Ethanol gas detector yog tsim los xyuas thiab saib xyuas cov roj ethanol hauv lub sijhawm. Kev txhim kho ruaj khov ntawm cov cuab yeej no ua kom muaj kev soj ntsuam tas li ntawm ethanol gas concentration, ua rau nws yog ib qho kev daws teeb meem zoo tshaj plaws rau kev ua haujlwm nyab xeeb ntawm cov chaw uas ethanol gas tsim, khaws cia lossis siv, xws li distilleries, bioethanol nroj tsuag, thiab chaw soj nstuam.

Cov cuab yeej muab cov txiaj ntsig txhim khu kev qha thiab ua kom muaj kev nyab xeeb ntawm cov neeg ua haujlwm thiab cov khoom. Nws cov yam ntxwv siab heev suav nrog LCD zaub uas muab cov qib siab ntawm lub sijhawm tiag tiag hauv ppm lossis % LEL, teeb tsa lub tswb teeb tsa, thiab kho cov qib rhiab heev. Gas detector yog ib qho yooj yim rau kev khiav lag luam nrog ib tug yooj yim calibration txheej txheem, tsawg zog noj, thiab rugged kev tsim kho.

Nrog rau kev siv ethanol ntau ntxiv hauv ntau qhov kev lag luam, nws yog ib qho tsim nyog yuav tsum muaj cov khoom siv roj ethanol txhim khu kev qha nyob rau hauv qhov chaw. Peb lub cuab yeej ua kom ntseeg tau tias cov roj ethanol tau soj ntsuam tas li, tso cai rau kev ua haujlwm raws sijhawm thaum muaj xwm txheej ceev thiab ua kom muaj kev nyab xeeb thiab nyab xeeb ntawm kev ua haujlwm.

3. Nta:

LCD zaub ua lus Askiv

Dej pov thawj, plua plav pov thawj thiab tawg pov thawj

High precision thiab ceev teb sensor

Nthuav ethanol gas los ntawm ntuj diffusion

Adjustable ob lub tswb ceeb toom

DC12V-24V ua haujlwm lub zog

4-20mA lossis RS485 Modbus teeb liab tso zis

3A relay rau solenoid valve lossis kiv cua thiab lwm yam khoom siv

Lub tswb nrov thiab lub teeb ceeb toom los ntawm lub tswb nrov

Txuag 3000 cov ntaub ntawv ceeb toom

Txhawb kev txuas nrog lub tswb tswj vaj huam sib luag

CE ATEX CNEX ISO9001 Cov ntawv pov thawj tawg

100% nruj me ntsis tshuaj xyuas ua ntej pob

4. Technical parameters:

5. Daim ntawv thov:

Qhov no ruaj khov ethanol roj ntes tau dav siv hauv kev lag luam chemical, mines, tunnels, refinery, tawv Hoobkas, ntxhua khaub ncaws, tsev kho mob, ntau lawm cog thiab sai sai, ntes ethanol concentration los yog to, zoo tiv thaiv qhov tshwm sim ntawm lom.

6. Calibration ethanol gas detector:

Nco tseg:

1. Kev kho xoom tuaj yeem ua tau tom qab pib qhov ntsuas thiab ua tiav qhov pib.

2. Cov pa tuaj yeem nkag mus rau "Gas Calibration" cov ntawv qhia zaub mov raws li tus qauv atmospheric siab. calibration zaub tus nqi yog 20.9% vol. Tsis txhob ua xoom kho cov haujlwm hauv huab cua.

3. Txhawb nqa 3-point calibration. Yog tias tsuas muaj ib qho roj calibration xwb, thov teem caij rau lwm qhov calibration point rau 0 thiab tshem qhov calibration point.

Kauj ruam 1: Xoom kho

Nyob rau hauv lub ntsiab ntawv qhia zaub mov interface, nias rau sab laug khawm kom xaiv lub "Device Calibration" muaj nuj nqi, thiab ces nias lub khawm sab xis nkag mus rau cov ntawv qhia zaub mov ntawm input calibration lo lus zais los ntawm kev sib txuas ntawm cov nyees khawm los yog tej thaj chaw deb tswj qhov tseem ceeb, xaiv cov khoom xoom kho muaj nuj nqi, thiab tom qab ntawd nias lub khawm sab xis kom nkag mus rau xoom calibration ntawv qhia zaub mov, mus rau sab laug khawm xaiv hom roj, tom qab ntawd nias khawm sab xis kom nkag mus rau cov ntawv xaiv roj xoom ntxuav, txiav txim siab cov roj tam sim no 0.

Kauj ruam 2: Gas calibration

Qhib lub calibration gas. Tom qab tso tawm tus nqi ntawm cov roj yog ruaj khov, nkag mus rau cov ntawv qhia zaub mov tseem ceeb thiab xaiv cov ntawv qhia zaub mov calibration. Txoj kev ua haujlwm tshwj xeeb yog Kauj Ruam 1 ntawm xoom calibration.

Xaiv cov khoom muaj nuj nqi Gas Calibration, nias lub khawm sab xis nkag mus rau calibration roj xaiv interface, xaiv cov roj hom yuav tsum tau calibrated nias lub khawm sab xis nkag mus rau calibration point xaiv interface. Yog tias qhov ntsuas ntsuas qhov ntsuas yog khoob, nws yuav tso tawm ------.

Nias lub khawm sab laug dua kom nkag mus rau tus qauv roj concentration qhov chaw interface, .Tom qab ntawd siv cov nyees khawm sab laug thiab txoj cai los teeb tsa tus nqi concentration ntawm cov roj calibration. Piv txwv tias qhov calibration yog tam sim no, tus nqi concentration ntawm cov roj calibration yog tus qauv roj.

Tom qab calibration ua tiav, yog hais tias tus nqi tso tawm ntawm cov roj tsis ruaj khov, koj tuaj yeem rov calibration. Yog hais tias qhov calibration tsis ua hauj lwm, thov xyuas seb qhov concentration ntawm cov qauv roj yog raws li tus nqi calibration. Tom qab cov roj calibration tiav lawm, nias lub khawm sab xis kom rov qab mus rau cov roj hom xaiv interface kom ntsuas lwm cov ntsiab lus.
Tom qab cov roj calibration tiav lawm, nias cov ntawv qhia zaub mov kom txog thaum rov qab mus rau qhov chaw kuaj pom roj, lossis cia li tawm ntawm cov ntawv qhia zaub mov thiab rov qab mus rau qhov chaw kuaj pom roj tom qab lub countdown interface txo rau 0 yam tsis tau nias lub pob.
