1. Cov lus qhia luv luv:

Tsau-hom combustible CH4 gas detector yog ib qho cuab yeej tsim los xyuas qhov muaj cov pa taws hauv huab cua. Nws yog feem ntau siv nyob rau hauv kev lag luam chaw uas combustible gases yog tsim los yog siv (xws li gas pipelines, petrochemical nroj tsuag, thiab roj refineries) ceeb toom cov neeg ua hauj lwm ntawm tej zaum yuav gas leaks los yog buildup. Cov cuab yeej ua haujlwm los ntawm kev hnov qhov concentration ntawm cov pa roj combustible hauv huab cua thiab ua rau lub tswb yog tias qib siab tshaj qhov pib. Cov cuab yeej hluav taws xob ruaj khov yog nyob ruaj ruaj thiab txuas mus tas li rau qhov chaw ruaj khov, muab kev saib xyuas tas li ntawm ib puag ncig ib puag ncig rau qhov muaj peev xwm ua pa phem. Lawv yog cov cuab yeej kev nyab xeeb tseem ceeb hauv ntau qhov chaw ua haujlwm txaus ntshai.

2. Taw qhia ntxaws:

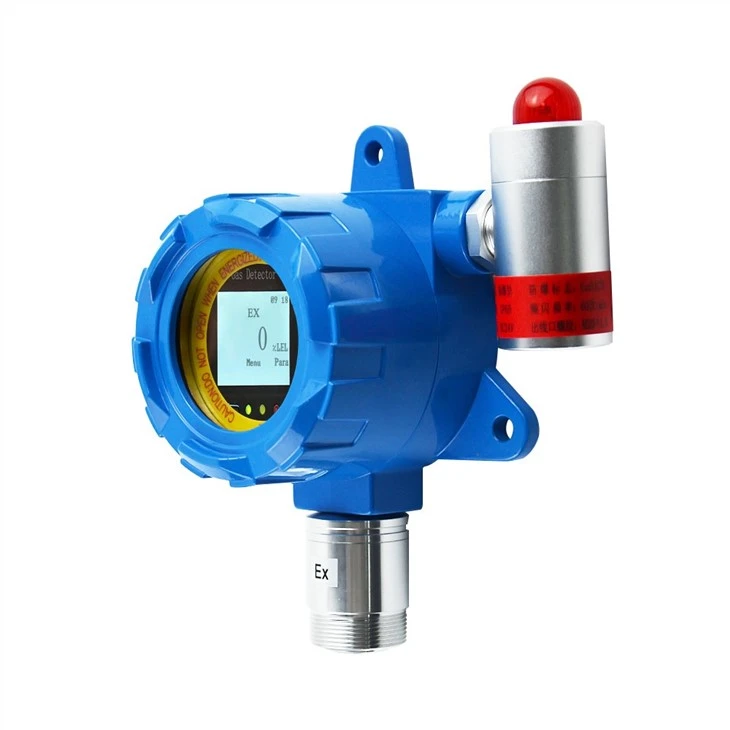

Xi'an Huafan thev naus laus zis ruaj khov methane CH4 gas detector feem ntau tau teeb tsa hauv lub rooj cob qhia thiab lub tsev khaws khoom kom tsim tau qhov chaw ruaj khov, uas yuav tsum tau siv ua ke nrog lub tswb ntsuas. Tus maub los tau muab tso rau hauv chav saib xyuas kom tswj tau cov ntsiab lus saib xyuas. Lub CH4 Gas Detector yog ntsia rau hauv qhov chaw uas cov roj combustible feem ntau yuav xau. Nws lub ntsiab tivthaiv yog ib tug built-in combustible gas sensor, uas ntes cov concentration ntawm cov pa nyob rau hauv cov huab cua. Lub detector hloov cov roj concentration pom los ntawm lub sensor mus rau hauv lub teeb liab hluav taws xob thiab xa mus rau tus tswj los ntawm cov cables. Qhov siab dua cov roj concentration yog, lub zog hluav taws xob teeb liab yuav muaj zog. Thaum cov roj concentration nce mus txog lossis tshaj lub tswb ceeb toom los ntawm lub tswb tswj, lub tswb yuav xa lub tswb ceeb toom thiab pib lub tshuab hluav taws xob hluav taws xob, lub tshuab hluav taws xob thiab lwm yam khoom siv sab nraud kom tshem tawm cov kev phom sij zais cia.

3. Khoom Parameters:

Lub npe	CH4 Gas Detector
Sensor	Catalytic combustion Sensor
Ntsuas roj	Methane CH4, LEL LPG, H2 ethanol thiab lwm yam combustible gas
Ntsuas Ntau	0-100 feem pua
Teb sijhawm	Tsawg dua los yog sib npaug li 20s
Qhov kub thiab txias	- 20 degree ~ 50 degree
Kev sib kis nrug	＜ 1000 m
Xaiv tau	suab thiab lub teeb tswb lub teeb, multi-gas tswb xws li
Txheem pob	Gas detector, Kev qhia ua lus Askiv, Daim ntawv pov thawj, thawv pob

4. Ntsuas roj:

Tsis muaj	Kev Ntsuas Gas	Roj	Ntsuas Ntau	Kev daws teeb meem	Tswb Point (Low/High)
1	Combustible Gas	EX	0-100 feem pua LEL	1% LE	25/50 feem pua LEL
2	Oxygen	O2	0-30 feem pua VOL	0.1% VOL	18% / 23% VOL
3	Hydrogen sulfide	H2S	0-200 ppm	0.1 ppm	10/20 ppm
4	Cov pa roj carbon monoxide	CO	0-1000/2000 ppm	1ppm ua	50/150 ppm
5	Nitrogen Dioxide	TSIS MUAJ 2	0-20 ppm	0.1 ppm	5/10 ppm
6	Nitric Oxide	TSIS MUAJ	0-250 ppm	1ppm ua	25/50 ppm
7	Cov pa roj carbon dioxide	CO2	0-5 feem pua VOL	0.01 feem pua VOL	0 2-0.5 VOL
8	Sulfur Dioxide	SO2	0-100 ppm	0.1 / 1 ppm	5/10 ppm
9	Chlorine	CL2	0-20 ppm	0.1 ppm	1/2 ppm
10	Ammonia	NH3	0-200 ppm	1ppm ua	35 / 70 ppm
11	Hydrogen	H2	0-1000 ppm	1ppm ua	35 / 70 ppm
12	Phosphine	PH 3	0-1000 ppm	1ppm ua	5/10 ppm
13	Hydrogen Chloride	HCL	0-100 ppm	1ppm ua	10/20 ppm
14	Ozone	O3	0-50 ppm	0.1 ppm	5/10 ppm
15	Hydrogen Floride	HF	0-50 ppm	1ppm ua	5/10 ppm
16	Methanol	CH4O	0-100 ppm	1ppm ua	5/10 ppm
17	Formaldehyde	HCHO	0-100 ppm	1ppm ua	10/20 ppm
18	Ethylene Oxide	ETO	0-100 ppm	1ppm ua	10/20 ppm
19	Nitrogen	N2	70-100 VOL	0.1 VOL	82/90 VOL
20	Organic Compound	VOC	0-100 ppm	1ppm ua	10/20 ppm

CH4 Gas Detector Price

CH4 Gas Detector Suppliers

CH4 Gas Detector for sale

CH4 Gas Detector manufacturer

5. Daim ntawv thov:

Muaj nyob ruaj ruaj ch4 gas detector yog dav siv nyob rau hauv cov chaw ntiav pw, factories, metallurgy, roj av, petrochemical, tshuaj, lub teeb kev lag luam, coking, municipal, roj, tshuaj, dej phwj tuaj kho thiab ntau yam tshwj xeeb industries thiab teb. Muaj peev xwm ntes tau ntau yam ntawm cov roj hluav taws xob, xws li Methane, natural gas, gas, ethane, propane, acetylene, butane, n-butane, isobutane, pentane, hexane, halogenated hydrocarbons (chloromethane, chlorohydrous, trichloroethane, vinyl chloride), cawv ( methanol, ethanol, propanol), ethers, ketones (butanone,), Gas uas muaj hydrogen, thiab lwm cov tebchaw (gasoline, industrial solvents, xim, diluents, coolants, qhuav tu tov, sulfur dioxide, ammonia, hydrogen sulfide, methyl acetate, thiab lwm yam. .). Nrog zoo repeatability thiab kub thiab av noo yam ntxwv, ntev kev pab cuam lub neej, yooj yim ua hauj lwm thiab lwm yam zoo, haum rau nrhiav kom tau roj concentration nyob rau hauv ib tug muaj kev lag luam ib puag ncig. Txuas nrog lub tshuab hluav taws xob los tsim cov kab ke, ntawm kev nkag siab zoo thiab ua haujlwm zoo ntawm lub sijhawm saib xyuas lub tswb.

E-mail:golf@huafankj.com

WhatsApp / Wechat: ntxiv rau 0086 15721910713

6. FAQ:

Q: Koj puas yog chaw tsim khoom lossis tuam txhab lag luam?

A: Chaw tsim tshuaj paus, 20 xyoo keeb kwm

Q: Puas tuaj yeem txais OEM lossis ODM?

A: Tau kawg.

Q: Lub sijhawm ua haujlwm ntawm cov khoom siv ntev npaum li cas?

A: Ntau tshaj 2 xyoos, feem ntau nyob ntawm kev siv ib puag ncig.

Q: Koj puas muaj pov thawj pov thawj pom zoo?

A: ATEX EU daim ntawv pov thawj.

Q: Koj tus MOQ yog dab tsi.
