1. Cov lus qhia luv luv:

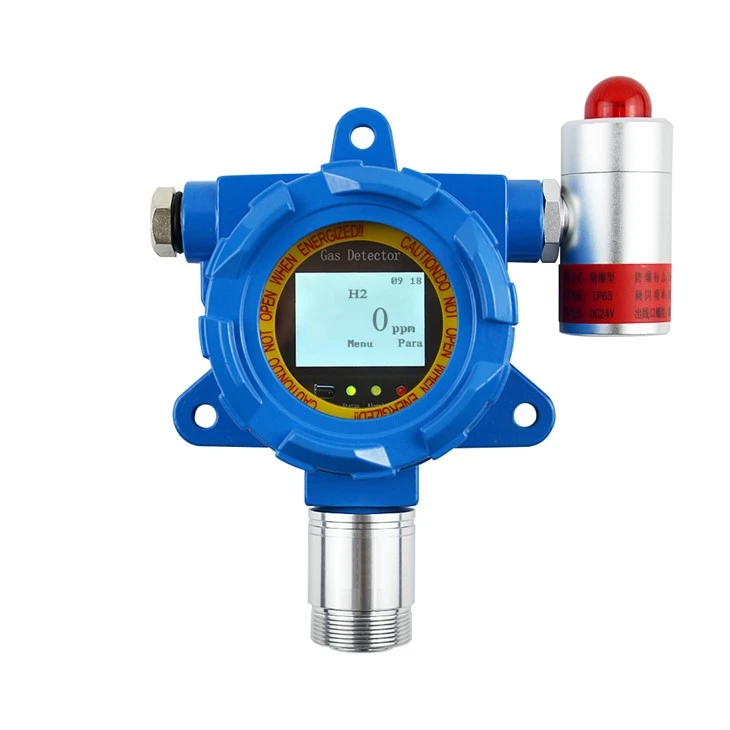

Lub taag hydrogen gas analyzer muaj ib tug hydrogen gas sensor, hluav taws xob tswj chav tsev, thiab tswb system. Lub hydrogen gas sensor feem ntau yog ib hom electrochemical sensor uas kuaj pom cov roj hydrogen concentration hauv huab cua. Lub tshuab hluav taws xob tswj cov txheej txheem ua cov ntaub ntawv tshawb pom los ntawm lub sensor thiab ua kom lub tswb nrov thaum cov roj hydrogen concentration siab tshaj qhov pib ua ntej.
2. Cov lus qhia ntxaws:
Tsau online hydrogen gas analyzer detector yog cov cuab yeej tshwj xeeb, feem ntau siv los kuaj xyuas thiab txheeb xyuas qhov muaj cov roj hydrogen hauv ib cheeb tsam. Cov cuab yeej no yog tsim los rau nruab rau hauv qhov chaw ruaj khov thiab yuav saib xyuas tas li kom muaj cov pa roj hydrogen.
Cov cuab yeej siv thev naus laus zis tshawb nrhiav kom pom cov pa roj hydrogen ntawm qhov qis heev. Lub tshuab hluav taws xob built-in yog tsim los teb sai sai rau qhov muaj cov pa roj hydrogen, ua rau lub tswb nrov thiab kaw cov txheej txheem thaum tsim nyog.
Cov cuab yeej no muaj kev ruaj ntseg zoo, muaj tseeb, thiab yog tsim los tiv thaiv kev lag luam hnyav. Cov cuab yeej no tseem tau nruab nrog cov duab digital uas muab kev saib xyuas lub sijhawm tiag tiag thiab tso cai rau cov neeg siv los hloov kho cov lus ceeb toom thiab qhov pib.
Kev teeb tsa yog seamless, thiab cov cuab yeej tuaj yeem koom ua ke nrog cov cuab yeej siv hluav taws xob uas twb muaj lawm, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau cov ntawv thov kev lag luam uas qhov kev saib xyuas tas li thiab raug yog qhov tseem ceeb tshaj plaws.
Zuag qhia tag nrho, qhov ruaj khov online hydrogen gas detector yog qhov tseem ceeb ntawm txhua qhov kev nyab xeeb hauv kev lag luam. Nrog nws cov peev xwm tshawb nrhiav tau zoo heev, qhov tseeb siab, thiab kev ua haujlwm txhim khu kev qha, cov cuab yeej no pab ua kom muaj kev nyab xeeb ntawm cov neeg ua haujlwm thiab cov khoom siv.
3. Khoom Parameters:
|
Lub npe |
Hydrogen Gas Analyzer |
|
Sensor |
Catalytic combustion Sensor / electrochemistry |
|
Ntsuas ntau yam |
0-100 feem pua lel/0-1000ppm |
|
Tso zis singal |
4-20mA, RS485 modbus, Relay |
|
Teb sijhawm |
Tsawg dua los yog sib npaug li 20s |
|
Qhov kub thiab txias |
- 20 degree ~ 50 degree |
|
Kev sib kis nrug |
＜ 1000 m |
|
xaiv tau |
suab thiab lub teeb tswb lub teeb, multi gas tswb controller |
|
Txheem pob |
Gas detector, Kev qhia ua lus Askiv, Daim ntawv pov thawj, thawv pob |
4. Ntsuas roj:
|
Tsis muaj |
Kev Ntsuas Gas |
Roj |
Ntsuas Ntau |
Kev daws teeb meem |
Tswb Point (Low/High) |
|
1 |
Combustible Gas |
EX |
0-100 feem pua LEL |
1% LE |
25/50 feem pua LEL |
|
2 |
Oxygen |
O2 |
0-30 feem pua VOL |
0.1% VOL |
18% / 23% VOL |
|
3 |
Hydrogen sulfide |
H2S |
0-200 ppm |
0.1 ppm |
10/20 ppm |
|
4 |
Cov pa roj carbon monoxide |
CO |
0-1000/2000 ppm |
1ppm ua |
50/150 ppm |
|
5 |
Nitrogen Dioxide |
TSIS MUAJ 2 |
0-20 ppm |
0.1 ppm |
5/10 ppm |
|
6 |
Nitric Oxide |
TSIS MUAJ |
0-250 ppm |
1ppm ua |
25/50 ppm |
|
7 |
Cov pa roj carbon dioxide |
CO2 |
0-5 feem pua VOL |
0.01% VOL |
0 2-0.5 VOL |
|
8 |
Sulfur Dioxide |
SO2 |
0-100 ppm |
0.1 / 1 ppm |
5/10 ppm |
|
9 |
Chlorine |
CL2 |
0-20 ppm |
0.1 ppm |
1/2 ppm |
|
10 |
Ammonia |
NH3 |
0-200 ppm |
1ppm ua |
35 / 70 ppm |
|
11 |
Hydrogen |
H2 |
0-1000 ppm |
1ppm ua |
35 / 70 ppm |
|
12 |
Phosphine |
PH 3 |
0-1000 ppm |
1ppm ua |
5/10 ppm |
|
13 |
Hydrogen Chloride |
HCL |
0-100 ppm |
1ppm ua |
10/20 ppm |
|
14 |
Ozone |
O3 |
0-50 ppm |
0.1 ppm |
5/10 ppm |
|
15 |
Hydrogen Floride |
HF |
0-50 ppm |
1ppm ua |
5/10 ppm |
|
16 |
Methanol |
CH4O |
0-100 ppm |
1ppm ua |
5/10 ppm |
|
17 |
Formaldehyde |
HCHO |
0-100 ppm |
1ppm ua |
10/20 ppm |
|
18 |
Ethylene Oxide |
ETO |
0-100 ppm |
1ppm ua |
10/20 ppm |
|
19 |
Nitrogen |
N2 |
70-100 VOL |
0.1 VOL |
82/90 VOL |
|
20 |
Organic Compound |
VOC |
0-100 ppm |
1ppm ua |
10/20 ppm |
5. Daim ntawv thov:
Lub ntsuas hluav taws xob ruaj khov hydrogen tau siv dav hauv ntau qhov kev lag luam, suav nrog petrochemical, refining, tsim hluav taws xob, aerospace, thiab chaw kuaj. Lub tshuab ntes tau siv los saib xyuas thaj chaw uas cov roj hydrogen tuaj yeem sib sau thiab ua rau muaj kev pheej hmoo ntawm kev tawg lossis hluav taws.
6. Kev tu:
Txhawm rau kom ntseeg tau tias qhov kev ua tau zoo ntawm qhov ruaj khov hydrogen gas leak detector, yuav tsum muaj kev saib xyuas tsis tu ncua. Kev saib xyuas feem ntau suav nrog kev ntsuas lub ntsuas ntsuas, kuaj xyuas lub ntsuas ntsuas thiab ntsuas qhov ntsuas qhov tsis sib xws, thiab hloov cov khoom siv tsis raug. Nws tseem yog ib qho tseem ceeb los xyuas kom meej tias lub detector tau nruab rau hauv qhov chaw tsim nyog thiab lub sensor tsis raug rau cov tshuaj los yog tshuaj uas yuav cuam tshuam rau nws cov kev ua tau zoo. Kev saib xyuas tsis tu ncua yuav ua kom paub tseeb tias lub tshuab kuaj xyuas ua haujlwm tau zoo thiab raug, muab qhov kev ceeb toom ntxov txhim khu kev qha thaum muaj cov pa roj hydrogen.
